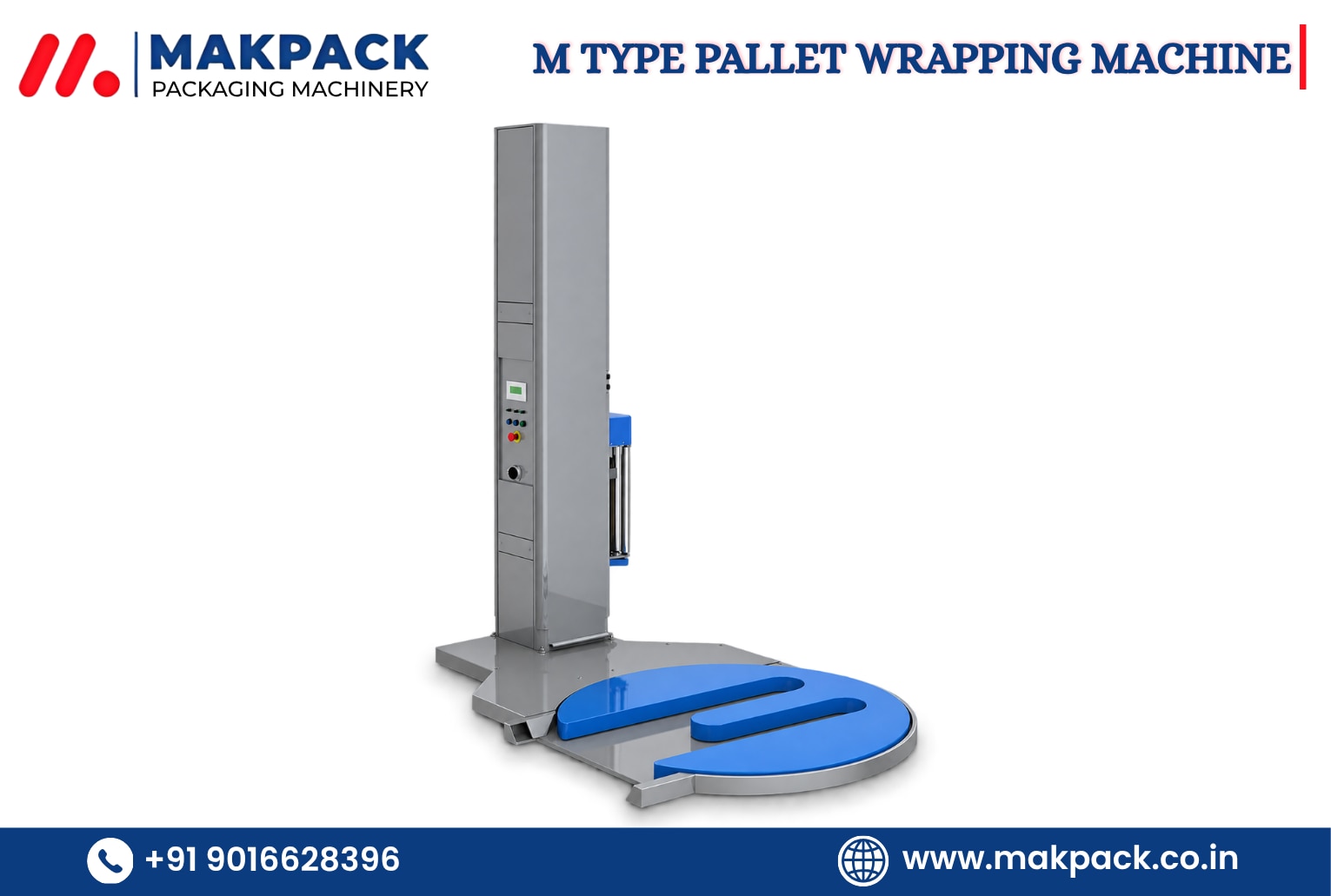

M TYPE PALLET WRAPPING MACHINE

M Type Pallet Wrapping Machine Manufacturer in Ahmedabad.

In modern packaging operations, secure, consistent pallet wrapping plays a key role in protecting products during storage and transportation. MakPack Machinery's M Type Pallet Wrapping Machine simplifies pallet wrapping while delivering uniform film application, reliable performance, and efficient handling of loaded pallets.

With a maximum load capacity of 2000 kg and wrapping heights up to 2200 mm, this machine suits a wide range of industrial packaging needs. Its M-type pallet loading and unloading arrangement makes pallet movement convenient while helping operators maintain a smooth packaging workflow.

Technical Specifications

• Turntable Speed: 0–15 RPM

• Loads Per Hour: 18–20, depending on pallet pick & place

• Wrapping Height: 2200 mm

• Maximum Loading Weight: 2000 kg

• Turntable Diameter: 1700 mm

• Turntable Height: 75 mm

• Machine Length: 2650 mm

• Machine Width: 1740 mm

• Machine Height: 2500 mm

• Power Requirement: 440 V, 50 Hz, 3 Phase + N

• Power Consumption: 2 kW

• Turntable Motor: 2 HP, three-phase geared motor

• Film Elevator Motor: 0.5 HP geared motor

• Powered Pre-Stretch Motor: 0.5 HP geared motor

• Control: Delta PLC with recipe function

• Loading & Unloading: M-type cut system

Efficient Pallet Wrapping for Industrial Applications

The machine is engineered for dependable day-to-day operation. Its turntable operates at adjustable speeds from 0 to 15 RPM, allowing the wrapping process to adapt to product requirements. Depending on pallet pick-and-place operations, it can handle approximately 18 to 20 loads per hour.

The powered pre-stretch system helps optimize stretch film usage while maintaining consistent wrapping tension around the pallet. This can improve load stability and contribute to more economical packaging.

Robust Construction and Reliable Components

MakPack Machinery builds the M Type Pallet Wrapping Machine using M.S. sheet, laser-cut components, aluminum alloy, and channel construction. The MS structure is powder-coated for a durable finish suitable for industrial environments.

The machine incorporates established electrical and mechanical components, including a Delta PLC controller, Delta VFD, Crompton/ABB motors, Robox gearbox, Schneider switchgear, RR cables, and P&F sensors. The PLC-based control system supports Auto, Semi-Auto, and Manual operating modes, providing flexibility for different packaging processes.

Why Choose MakPack Machinery?

As an experienced packaging machinery manufacturer, MakPack Machinery focuses on practical machine design, consistent performance, and application-oriented solutions. The M Type Pallet Wrapping Machine is a suitable choice for businesses looking to improve pallet packaging efficiency without compromising load security.

Looking for reliable pallet wrapping equipment for your packaging line? Contact MakPack Machinery today to discuss your requirements and get the right M Type Pallet Wrapping Machine for your application.

FAQs

1. What is the maximum load capacity of the M Type Pallet Wrapping Machine?

The machine can handle a maximum pallet loading weight of 2000 kg, making it suitable for various industrial palletized products.

2. What wrapping height can the machine accommodate?

The M Type Pallet Wrapping Machine offers a maximum wrapping height of 2200 mm, depending on the pallet and load dimensions.

3. Who supplies M Type Pallet Wrapping Machines in Gujarat?

MakPack Machinery supplies M Type Pallet Wrapping Machines for industrial packaging applications and serves customers across Gujarat and India.
