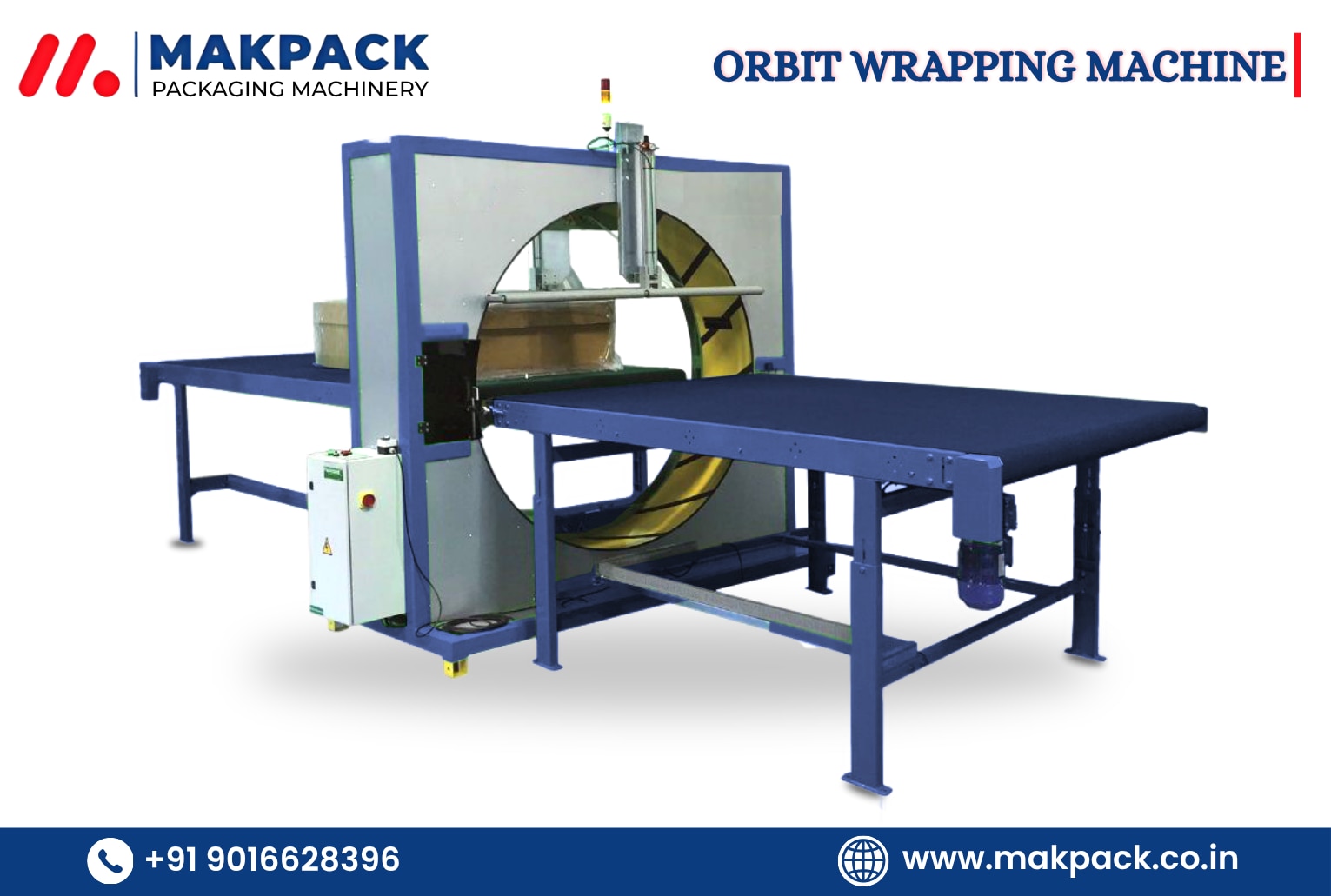

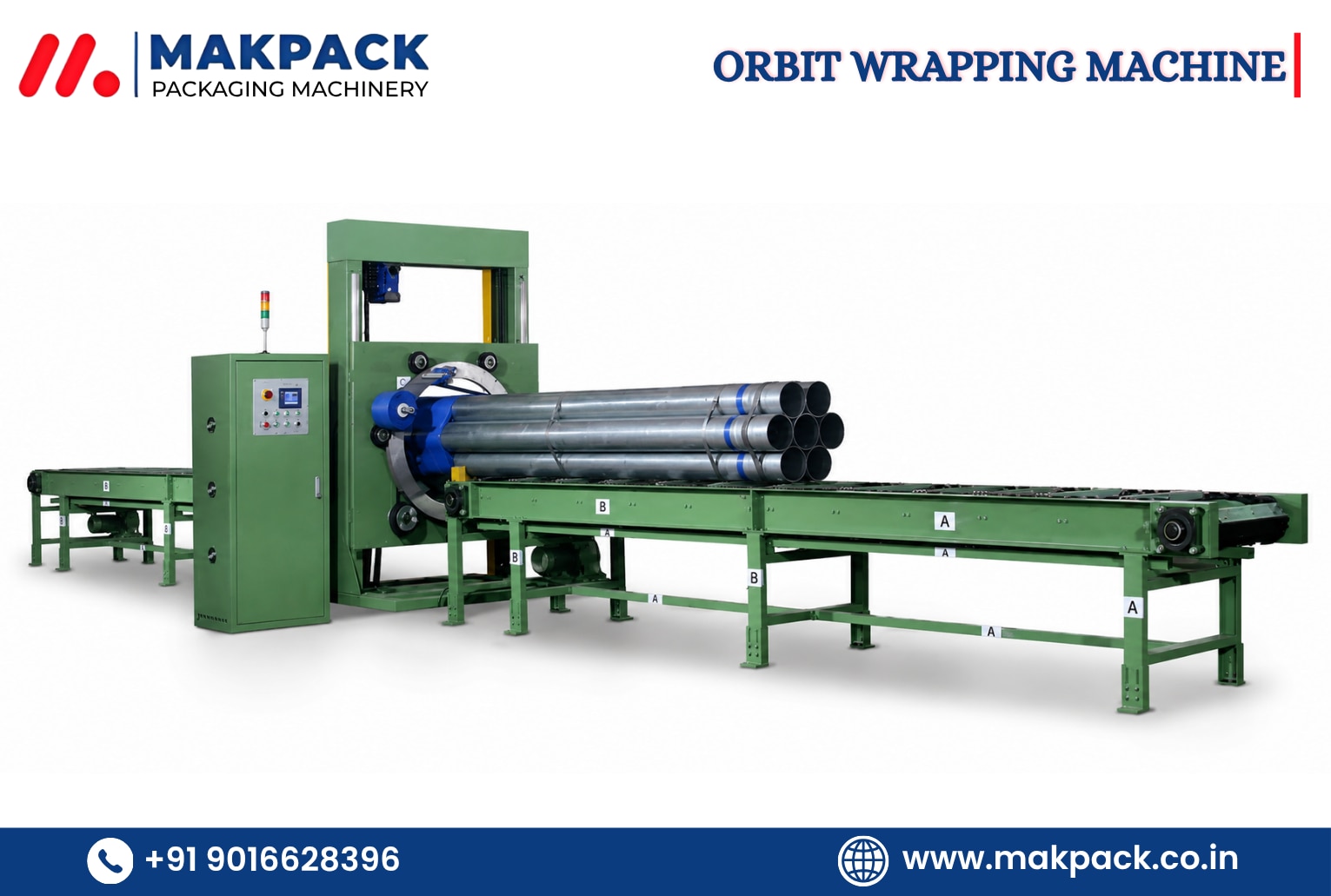

ORBIT WRAPPING MACHINE

Orbit Wrapping Machine Manufacturer in Ahmedabad.

Mak Pack Machinery offers a practical solution for wrapping long and cylindrical products with consistent stretch film coverage. The Orbit Wrapping Machine Manufacturer in Ahmedabad offers a machine designed for products ranging from 5 to 12 inches in diameter, 1.5 to 5 meters in length, and 50 to 100 kg in weight. Its controlled wrapping process helps improve packaging consistency while reducing manual effort.

Technical Specification

• Working Product Diameter: 5 Inch to 12 Inch

• Working Product Length: 1.5 Mtr to 5 Mtr

• Product Weight: 50 to 100 KG

• Stretch Film Core ID: 75 MM

• Stretch Film OD: Up to 200 MM

• Packing Efficiency: 10–15 Hour*

• Turntable Speed: 0–10 RPM

• PLC & VFD: DELTA Make

• Ring Size: 400 MM (as per customer requirement)

• Infeed Conveyor: 5000 MM

• Outfeed Conveyor: 5000 MM

• Belt Width: 310 MM

• Conveyor Width: 500 MM

• Ring Motor: 1 HP

• Conveyor Motors: 1 HP × 2 Nos.

• Motor Drives (VFD): 3 Nos.

• Pneumatic Cylinder: JANTICS Make

• Speed: Variable

• Working Height: 700 MM

• Power Supply: 3 Phase

• Air Supply: Pneumatic Air Compressor Required

*Packing efficiency depends on product dimensions and the number of wrapping rounds required.

Designed for Controlled Wrapping

The Orbit Wrapping Machine Supplier in Gujarat includes variable-speed operation, allowing you to adjust the wrapping cycle to product requirements. The PLC and VFD-based control system provides better control over ring and conveyor movement, while the 400 mm ring can be customized as required.

The conveyor arrangement includes 5-meter infeed and outfeed sections, making the Orbit Wrapping Machine Distributor in India suitable for continuous material movement. Separate 1 HP motors drive the ring and conveyors, supporting smooth, coordinated operation.

Why Choose Mak Pack Machinery?

For manufacturers handling long products, consistent stretch wrapping can significantly improve packaging quality. The Orbit Wrapping Machine Manufacturer in Ahmedabad provides a combination of variable speed, pneumatic operation, conveyor handling, and customizable configuration. Mak Pack Machinery focuses on practical machine design suited to individual production requirements.

Frequently Asked Questions

1. What product sizes can the machine handle?

It is designed for products with diameters of 5–12 inches, lengths of 1.5–5 meters, and weights of 50–100 kg.

2. Is the wrapping speed adjustable?

Yes. Turntable speed is variable from 0–10 RPM depending on the product and wrapping requirements.

3. Can the machine configuration be customized?

Yes. We can provide the ring size according to customer requirements.

Choose Mak Pack Machinery for dependable industrial wrapping equipment. Contact us today for specifications and a customized quote.
