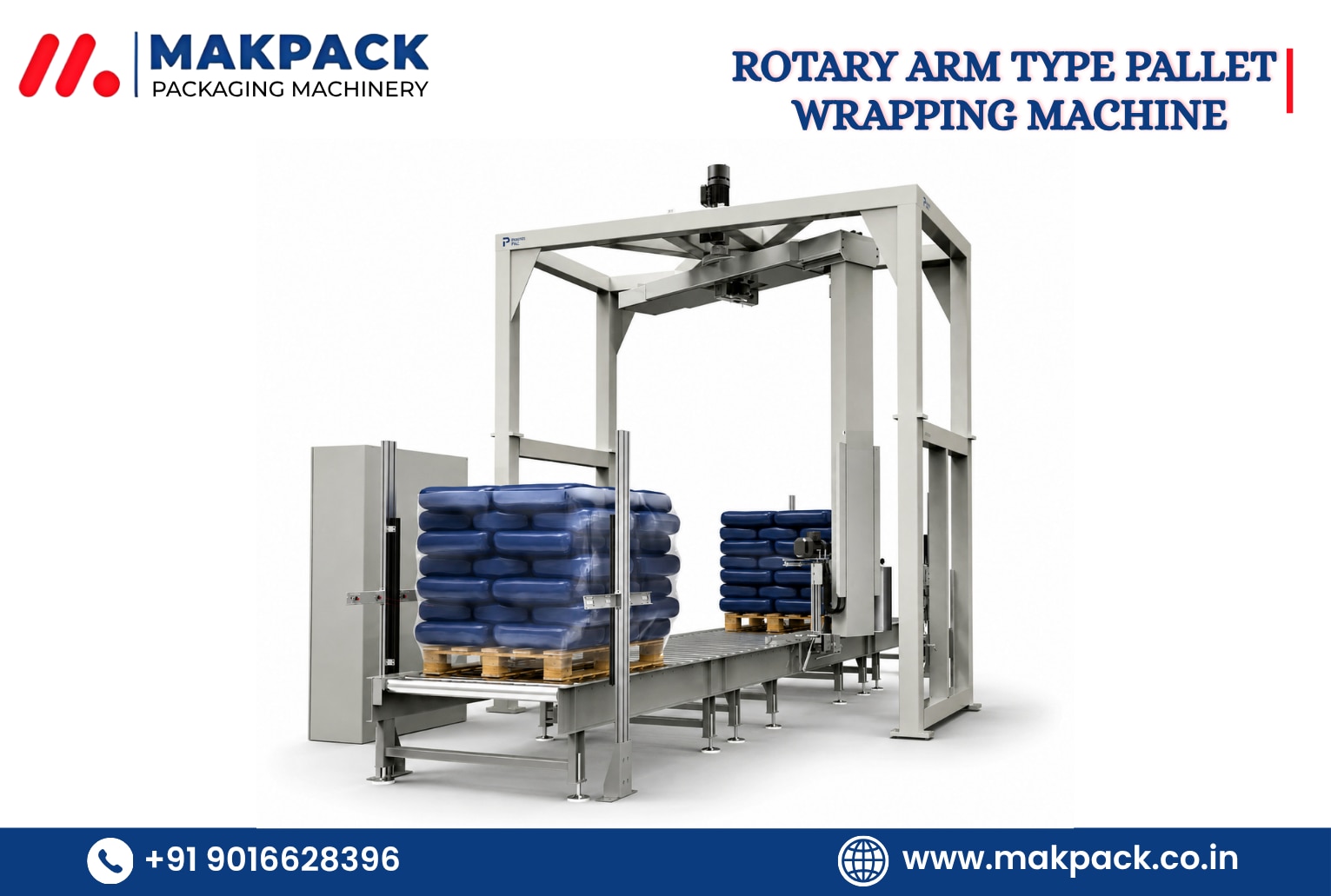

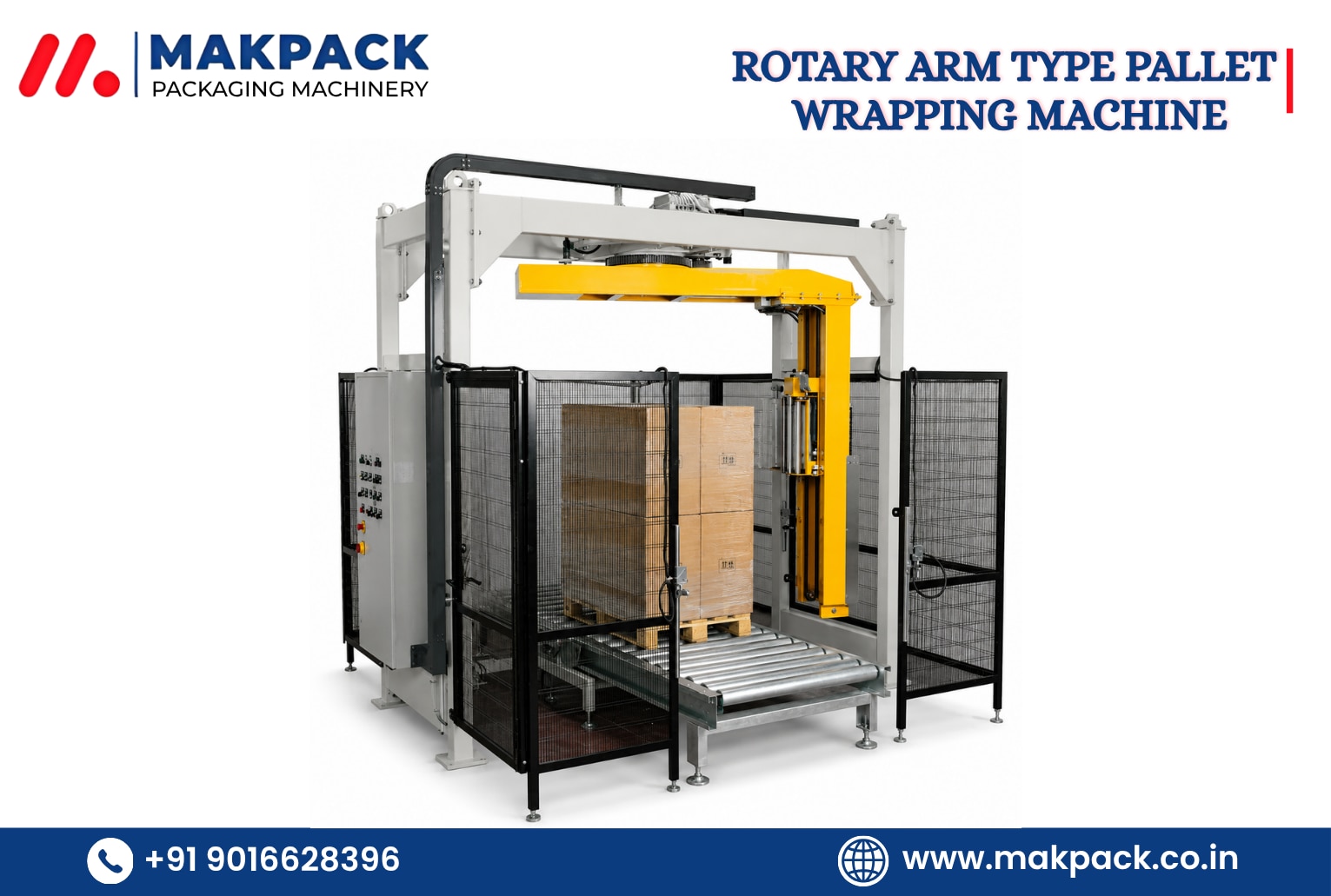

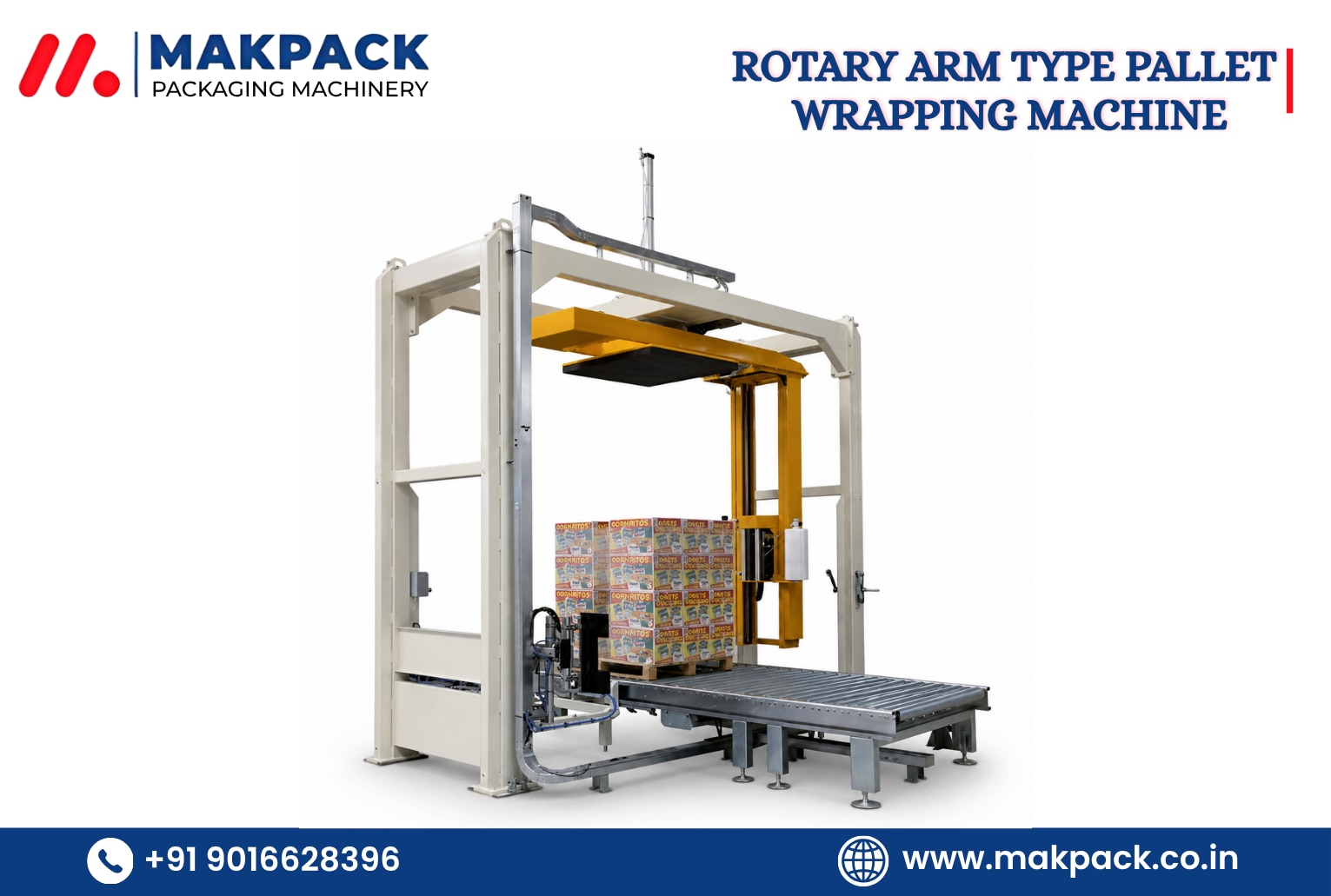

ROTARY ARM TYPE PALLET WRAPPING MACHINE

Rotary Arm Type Pallet Wrapping Machine Manufacturer in Ahmedabad.

The Rotary Arm Type Pallet Wrapping Machine Manufacturer in Ahmedabad, Mak Pack Machinery, provides an efficient solution for securing palletized goods with stretch film. Unlike turntable machines, the pallet remains stationary while the rotary arm moves around the load. This design is especially useful for tall, unstable, lightweight, or fragile products that may shift during conventional wrapping.

As a trusted Rotary Arm Type Pallet Wrapping Machine Supplier in Gujarat, Mak Pack Machinery offers machines designed for consistent wrapping, reduced film consumption, and easy integration with modern packaging lines.

Technical Specifications

• Arm Rotation Speed: 0–20 RPM, adjustable through inverter

• Standard Operating Speed: Typically 10–15 RPM

• Maximum Wrapping Height: 2,000–2,100 mm, customizable

• Load Capacity: Unlimited on-floor weight capacity

• Stretch Film Width: Up to 500 mm

• Maximum Roll Diameter: Up to 280 mm

• Pre-Stretch Ratio: 250%–300% powered pre-stretch

• Throughput: Approximately 20–25 pallets/hour

• Power Supply: 3-Phase, 220V / 380V / 415V / 440V, 50/60 Hz

• Air Supply: 0.4–0.6 MPa, approx. 6 kgf/cm²

• Control System: PLC with HMI touchscreen

Key Features

The Rotary Arm Type Pallet Wrapping Machine Distributor in India offers packaging equipment with practical features for demanding production environments:

• Stationary Pallet Operation: Keeps the pallet fixed, reducing centrifugal forces and improving stability for fragile or uneven loads.

• Adjustable Arm Speed: Variable speed control lets you adapt wrapping cycles to different products.

• Powered Pre-Stretch: 250%–300% pre-stretch helps maximize film utilization and reduce packaging costs.

• PLC & HMI Control: Operators can set and monitor customized wrapping cycles through an easy-to-use touchscreen interface.

• Automation Ready: Can integrate with roller or chain conveyors for semi-automatic or fully automatic packaging lines.

• Safety Protection: Perimeter fencing, light curtains, bumper stops, and emergency-stop systems provide enhanced operator safety.

• Flexible Configuration: Wrapping height and machine configuration can be customized according to application requirements.

Applications

The Rotary Arm Type Pallet Wrapping Machine Manufacturer in Ahmedabad supplies machines suitable for warehouses, logistics operations, manufacturing plants, food processing, pharmaceuticals, FMCG, chemicals, and other industries where stable pallet packaging is essential.

Frequently Asked Questions

1. What is a rotary arm pallet wrapping machine?

It is a stretch wrapping machine in which the pallet remains stationary while a rotating arm wraps film around the load.

2. Is the machine suitable for fragile loads?

Yes. Since the pallet stays stationary, it is well suited for unstable, lightweight, tall, and fragile loads.

3. Can it be integrated with a conveyor system?

Yes. The machine can be integrated with roller or chain conveyors for automated pallet handling.

Looking for a dependable ROTARY Arm Type Pallet Wrapping Machine Supplier in Gujarat? Contact Mak Pack Machinery today for expert guidance and a customized quote.
